詳情介紹
JT系列電纜卷筒是我公司的拳頭產品之一，它以蝸卷強簧為動力，利用彈簧的儲能自動卷取電纜的機械裝置。具有供電簡單，操作安全可靠，電纜受力適中等特點。有滑環內裝式、滑環外裝式、懸臂式三種結構。其中滑環內裝式結構緊湊、外型美觀；滑環外裝式便于維修；懸臂式適于卷取較長較重電纜。
結構特點：1、采用蝸卷彈簧為動力，不消耗電能，工作可靠；2、采用集電滑環一碳刷結構傳遞電能，工作可靠；3、設置了可逆轉機構，避免卷筒逆轉而折斷彈簧。
Cable reel model series JTis one of the leading products made by ow company,which is a kind of mechanism driven by the suirling springs exploiting energy storage to wind the cables antomatically,featuring faciliy pover supply,safety and reliability in operation and correct stress on the cables.There are three diferent structures of
product arailable for the customersslip ring built -in type with compact and preuy contour; slip ring exterior installed tope in convenience of service;overhanging type which can wind much longer and heavy cables.
Structure features:1.Using swirling sprins as motive power requiring no electric energy consumption and reliable in operation. 2.Using collector slip ring-carbon brush bracket to transfer the electric energy steadily and continuously.3.Equipped with reversible mechanism to avoid the reel counter-rotating to lead the spring broken.

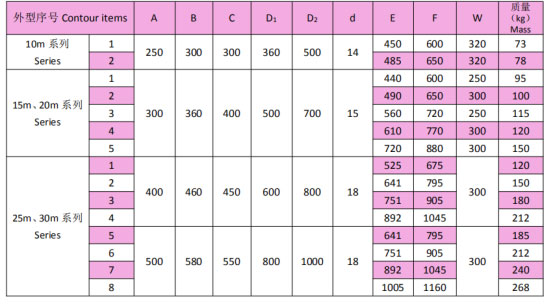

外形尺寸圖Overall dimension table

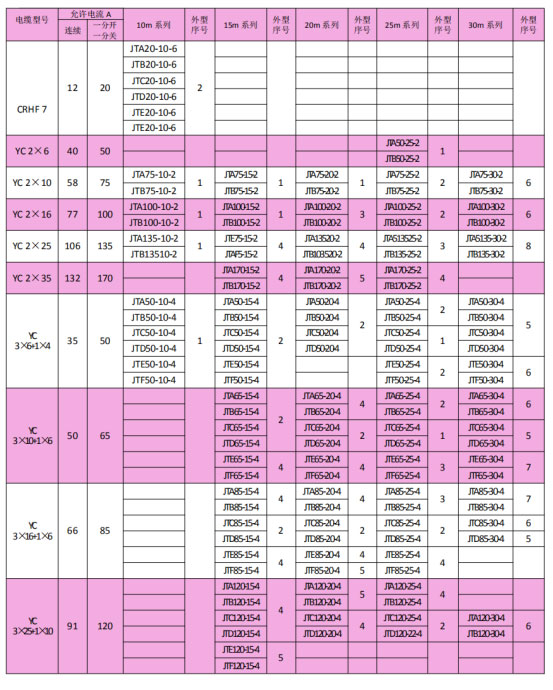

主要技術參數Main technical data
結構特點：1、采用蝸卷彈簧為動力，不消耗電能，工作可靠；2、采用集電滑環一碳刷結構傳遞電能，工作可靠；3、設置了可逆轉機構，避免卷筒逆轉而折斷彈簧。
Cable reel model series JTis one of the leading products made by ow company,which is a kind of mechanism driven by the suirling springs exploiting energy storage to wind the cables antomatically,featuring faciliy pover supply,safety and reliability in operation and correct stress on the cables.There are three diferent structures of
product arailable for the customersslip ring built -in type with compact and preuy contour; slip ring exterior installed tope in convenience of service;overhanging type which can wind much longer and heavy cables.
Structure features:1.Using swirling sprins as motive power requiring no electric energy consumption and reliable in operation. 2.Using collector slip ring-carbon brush bracket to transfer the electric energy steadily and continuously.3.Equipped with reversible mechanism to avoid the reel counter-rotating to lead the spring broken.
